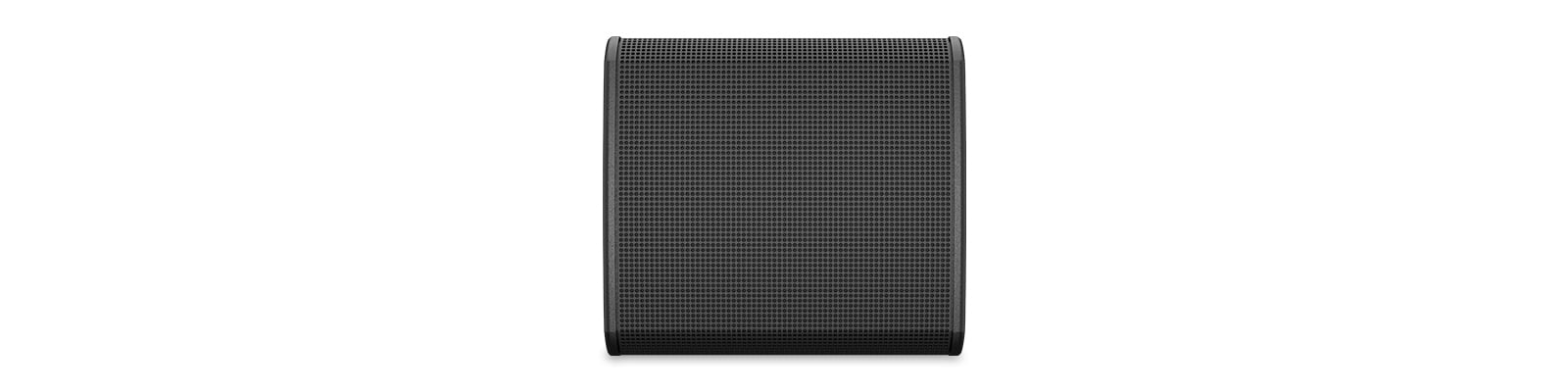

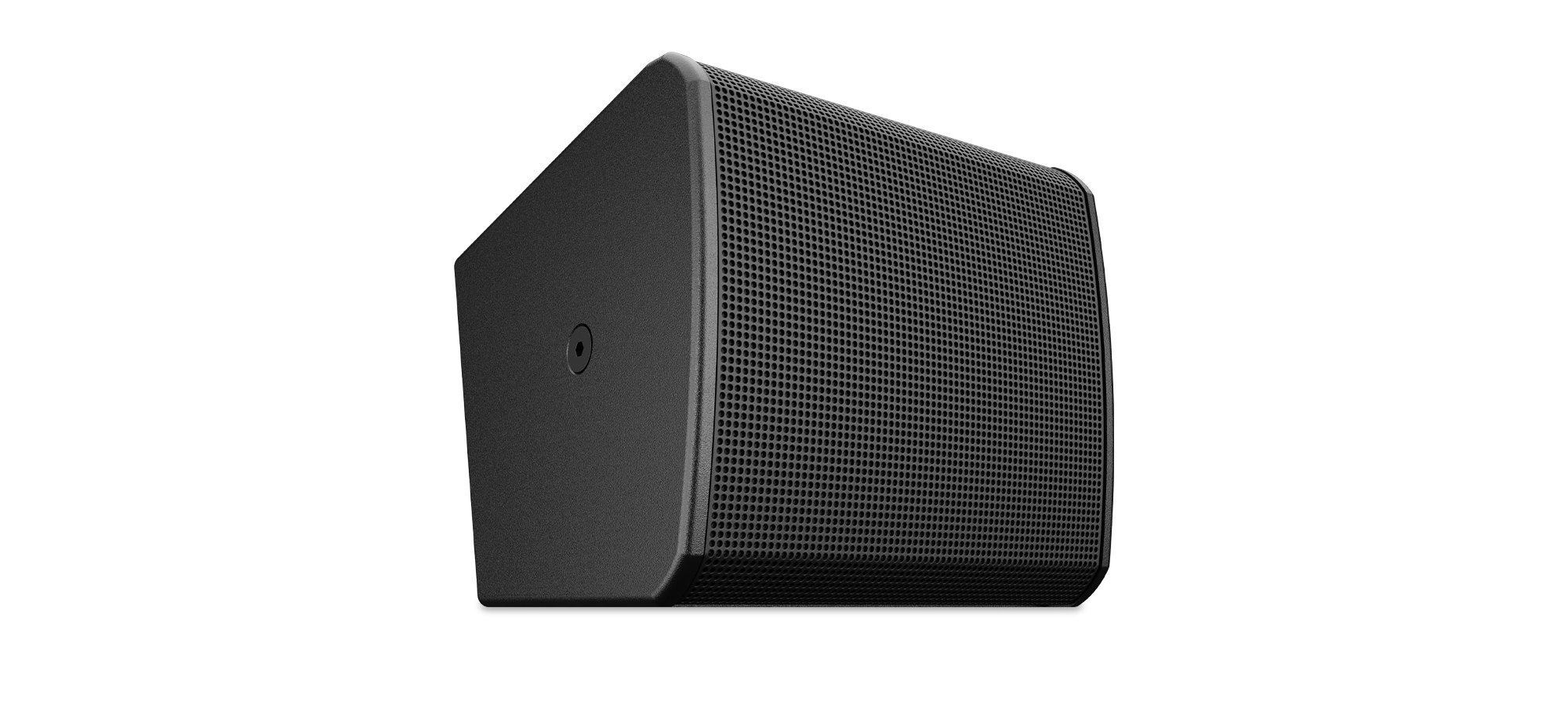

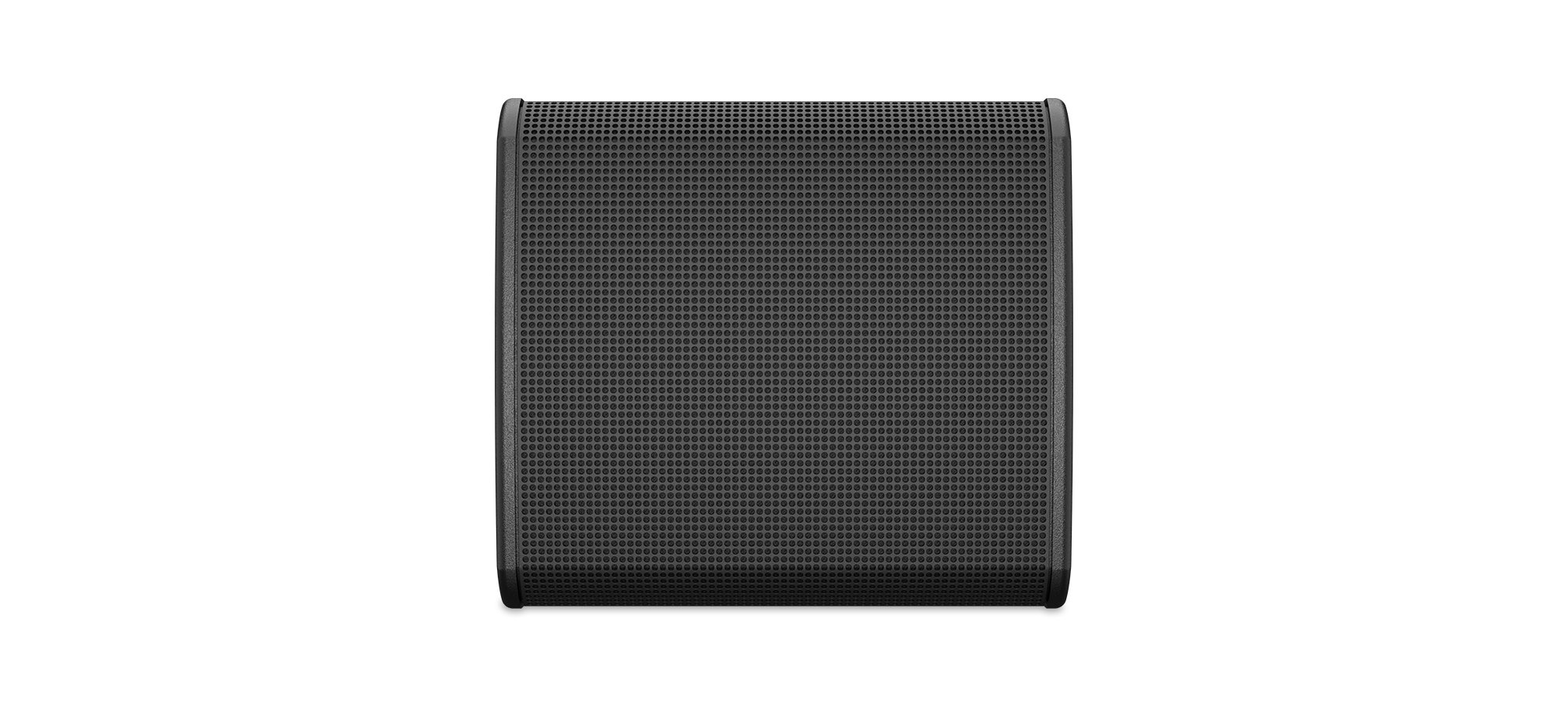

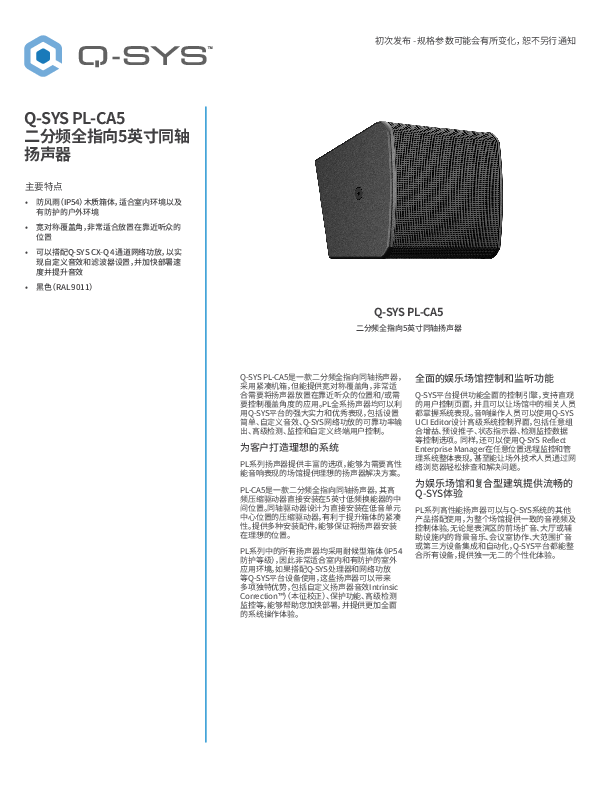

Q-SYS PL-CA5

Two-way, full-range 5-inch coaxial loudspeaker

The Q-SYS PL-CA5 is a two-way, full-range 5-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.

Features

  • 5-inch LF transducer + coaxial compression driver in a compact, bass-reflex enclosure
  • Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
  • Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance

Benefits

  • Deliver the right system for your customers: The PL-CA5 features a 5-inch transducer and a coaxial compression driver in a compact, bass-reflex enclosure, enabling high-performance audio across a broad range of applications that require wide symmetrical coverage. Pairing it with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
  • Full control and monitoring for Entertainment: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect Enterprise Manager to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
  • Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video, and control experience for the entire venue.
SPECIFICATIONS PL-CA5
Enclosure Configuration Two-way, full-range coaxial loudspeaker in bass reflex enclosure
Tranducers LF: 5 in (127mm), 1.5 in (38 mm) voice coil
Coaxial tweeter:  1 in (25mm) voice coil
Coverage 110° conical DMT
System Bandwidth (-10 dB with EQ) 72 Hz - 20 kHz (no subwoofer)
System Sensitivity 88 dB 1W/1m
Max SPL* (continuous) 105 dB

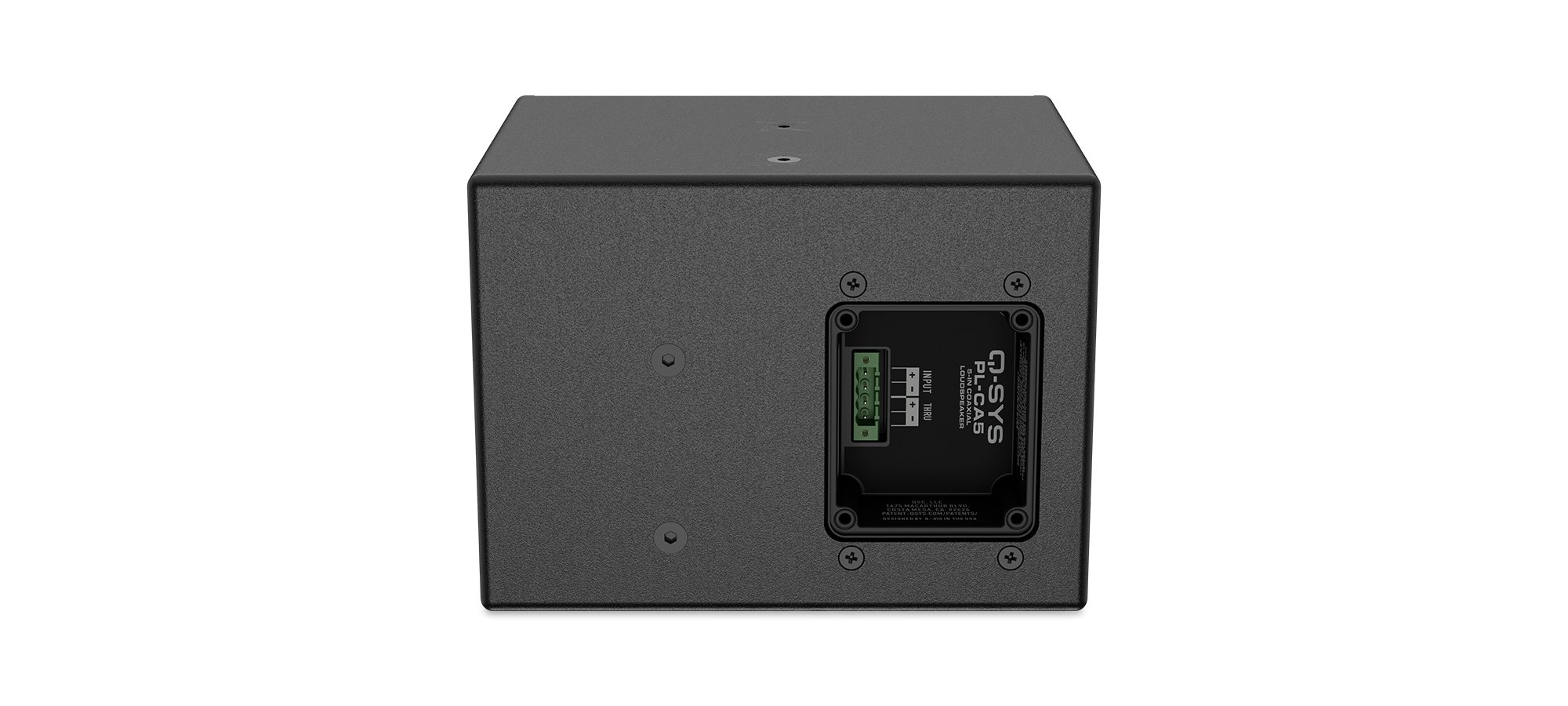

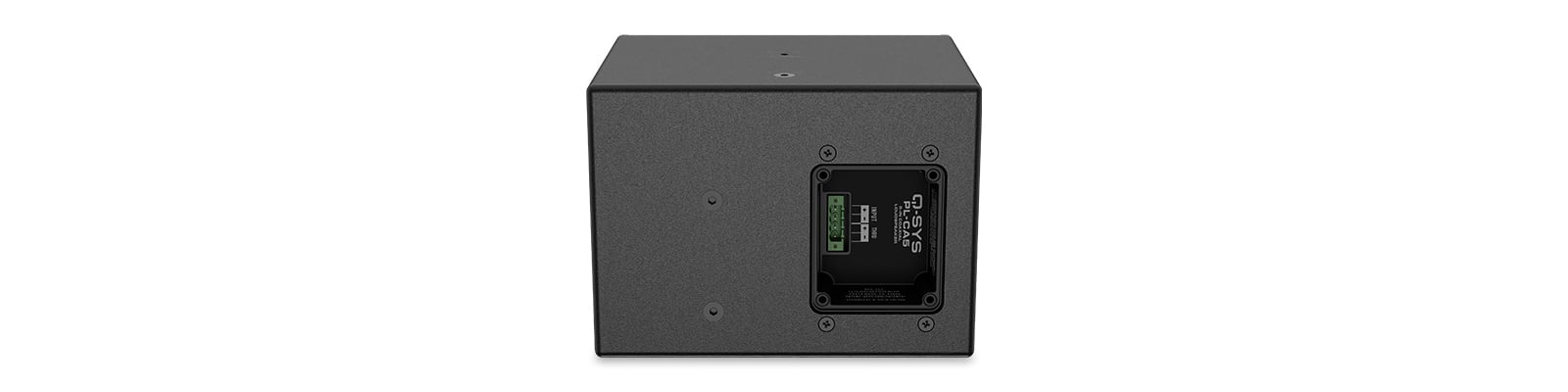

Connectors 1x Euroblock: Solid wire 14 AWG, 4 poles
Recommended Amplifiers CX-Q 8K4 (up to 8 per ch)
CX-Q 4K4 (up to 6 per ch)
CX-Q 2K4 (up to 4 per ch)
Enclosure Material: Exterior plywood
Enclosure Color: Black (RAL 9011)
Weatherization IP54
External plywood
Stainless screws
Treated grille vs. UV and corrosion
Hydrophobic stainless steel mesh behind grille
Polyurea Paint
Input cup (IP65) sealing with gland
Dimensions 7.1 x 7.9 x 7.1 in
(181 x 200 x 180 mm)
Weight 8.8 lb (4 kg)
Optional Accessories (sold separately)  PL-CA5-YM horizontal yoke mount
PL-DC24-FM flush mount (ceiling or wall)


*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
