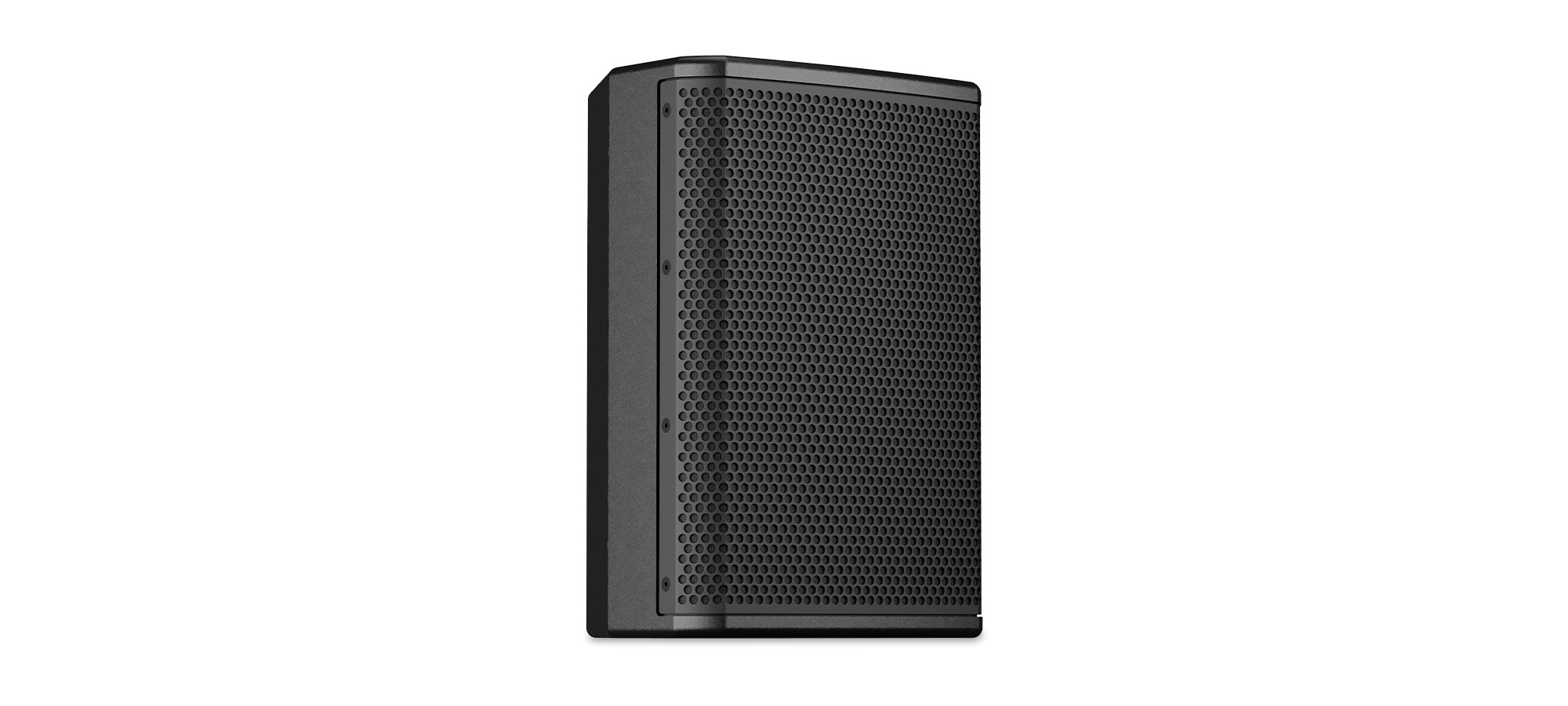

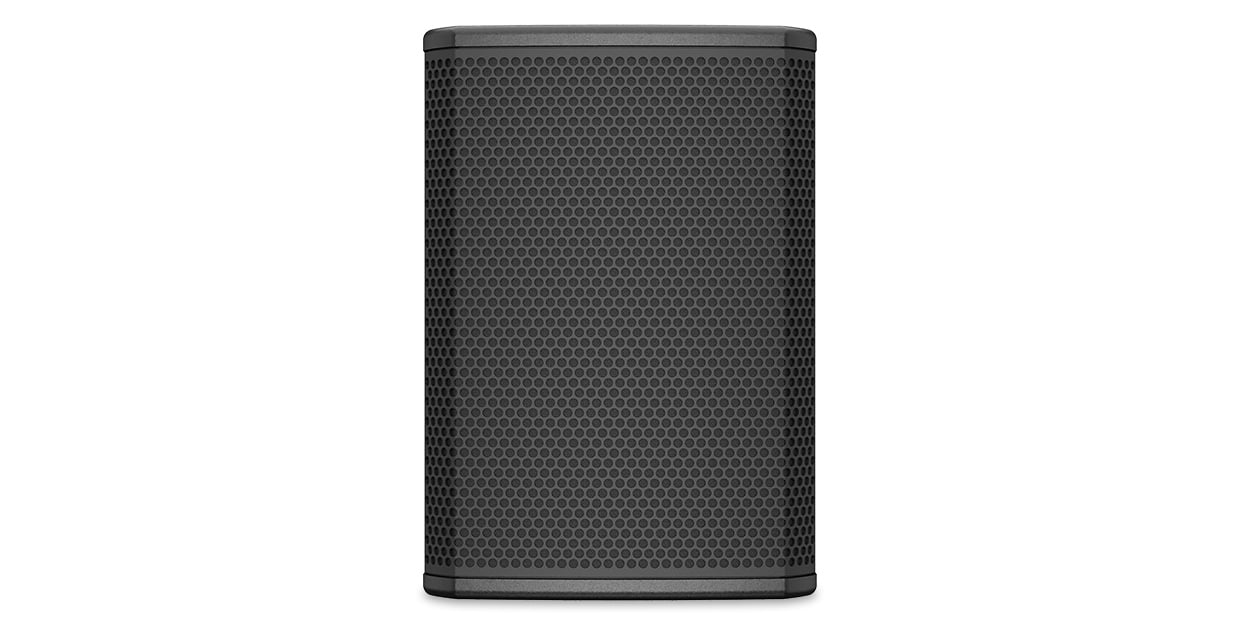

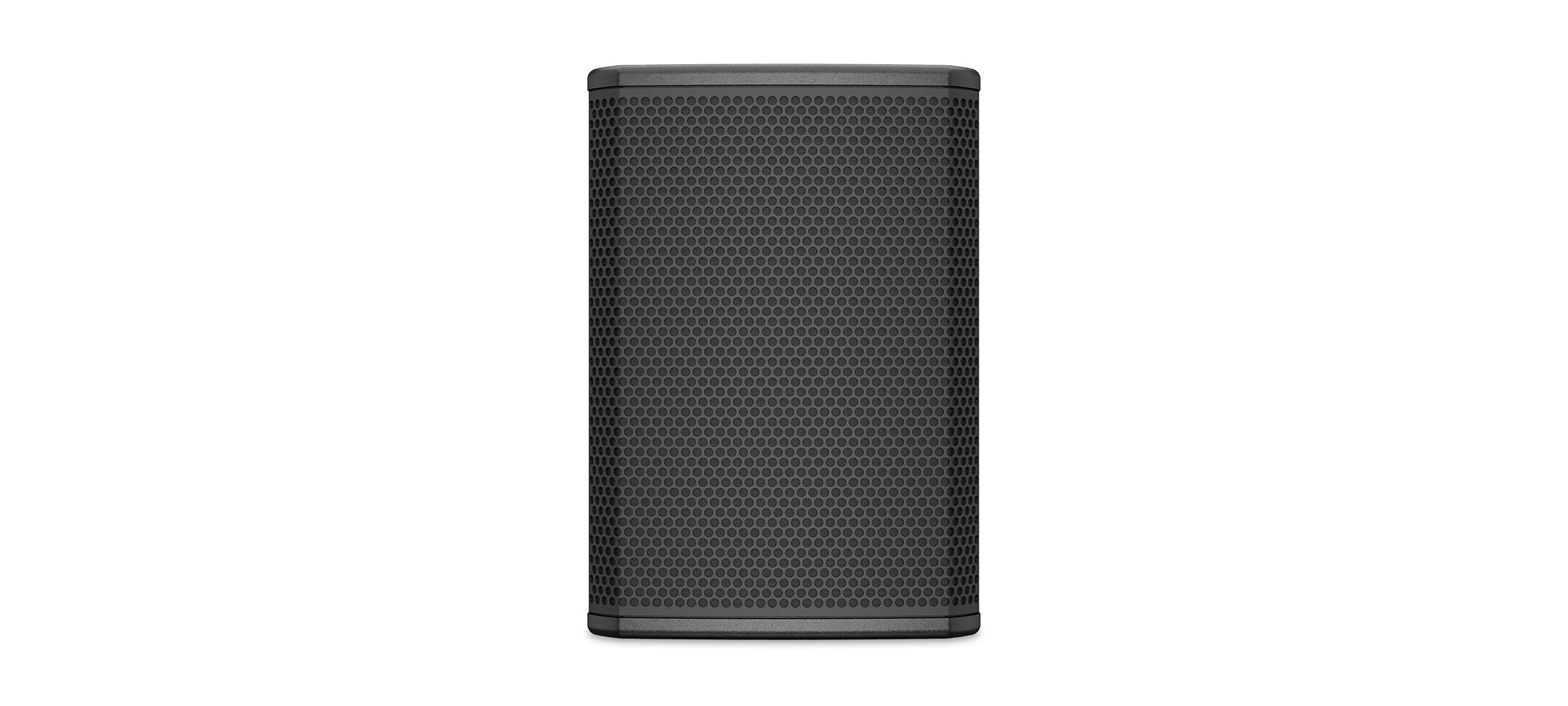

Q-SYS PL-CA6
Two-way, full-range 6-inch coaxial loudspeaker
The Q-SYS PL-CA6 is a two-way, full-range 6-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.
Features
- 6-inch LF transducer + coaxial HF compression driver in a compact, bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Benefits
- Deliver the right system for your customers: The PL-CA6 features a 6-inch transducer and a coaxial compression driver in a compact, bass-reflex enclosure, enabling high-performance audio across a broad range of applications that require wide symmetrical coverage. Pairing it with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
- Full control and monitoring for Entertainment: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect Enterprise Manager to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
- Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video, and control experience for the entire venue.
| SPECIFICATIONS | PL-CA6 |
| Enclosure Configuration | Two-way, full-range coaxial loudspeaker in bass reflex enclosure |
| Tranducers | LF: 6 in (170 mm), 1.75 in (44.5 mm) voice coil Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil |
| Coverage | 120° conical DMT |
| System Bandwidth (-10 dB with EQ) | 61 Hz - 20 kHz (no subwoofer) |
| System Sensitivity | 92 dB 1W/1m |
| Max SPL* (continuous) | 112 dB |

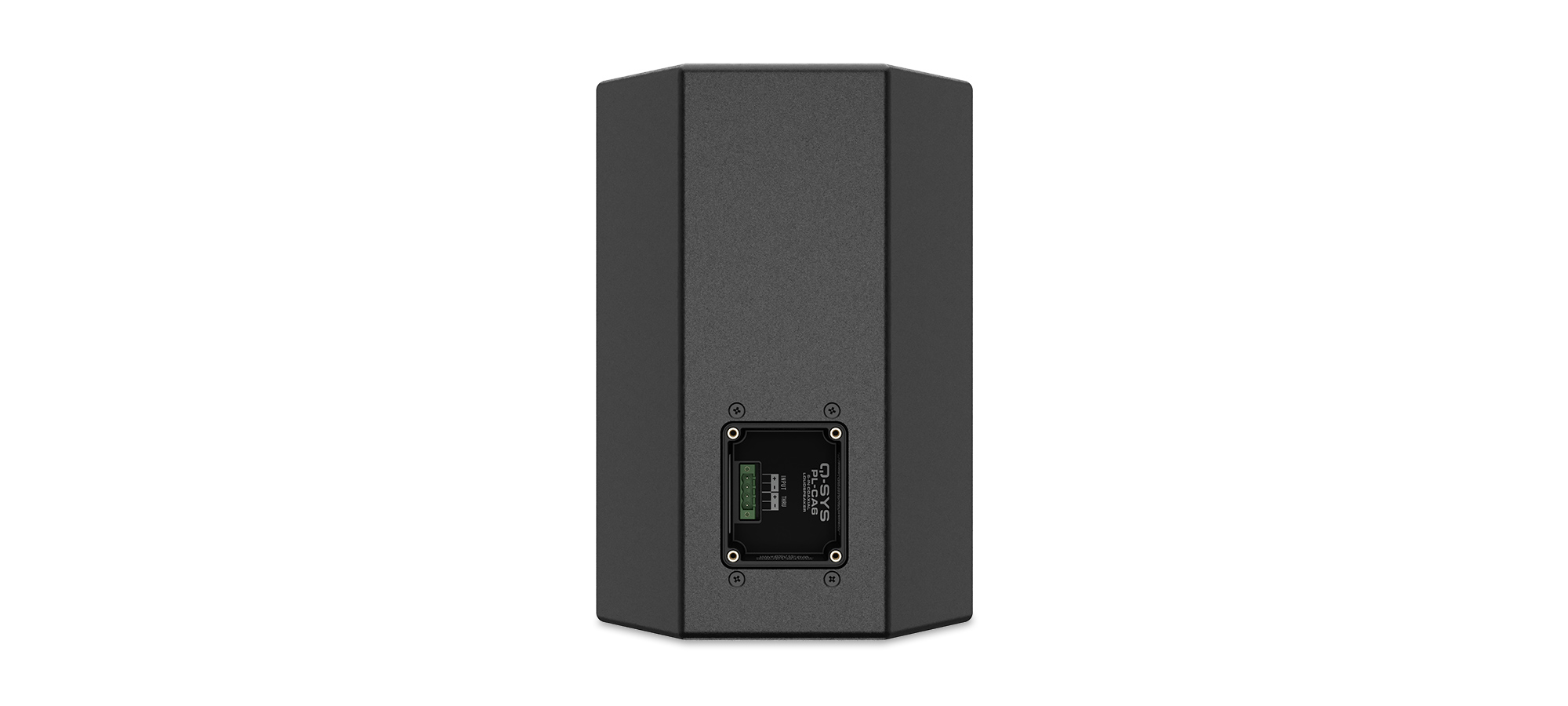

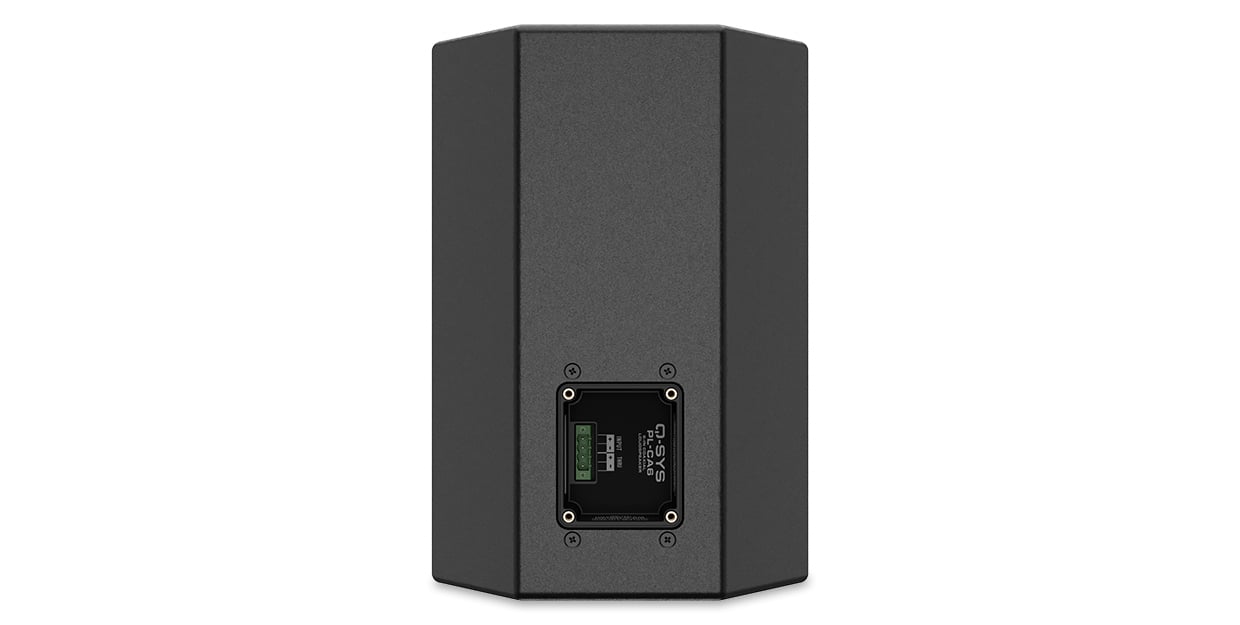

| Connectors | 1x Euroblock: Solid wire 14 AWG, 4 poles |
| Recommended Amplifiers | CX-Q 8K4 (up to 4 per ch) CX-Q 4K4 (up to 3 per ch) CX-Q 2K4 (up to 2 per ch) |
| Enclosure Material: | Exterior plywood |
| Enclosure Color: | Black (RAL 9011) |
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland |
| Dimensions | 12.5 x 8.7 x 7.1 in (316 x 220 x 180.5 mm) |
| Weight | 13.4 lb (6.1 kg) |
| Optional Accessories (sold separately) | PL-CA6-YM horizontal yoke mount |
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
